Calendar Window for a Date Field in Portal 9i/10g

Documents Created by             : Bharat Gali

Email                                      : bharat@bharatgali.com

Created date                            : 26-Jun-2004

Portal Version                          : 9i/10 G R2

Last Revised                            :22-Apr-2010

*********************************************************************************

 Steps to create a calendar and integrate to oracle portal form (9.x/10.x)

• Download calendarpopup.js to Apache web root directory (Oracle portal home).

        ($Oracle_Portal_Home\Apache\Apache\htdocs)

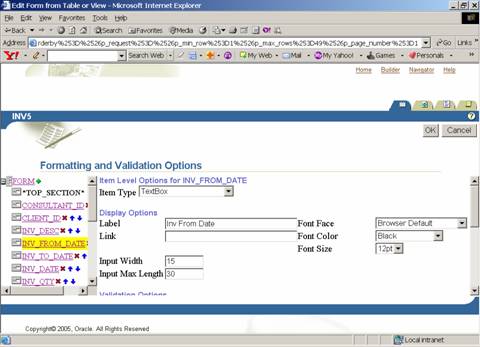

• Below is INV_FROM_DATE field in the portal form where we are adding

        date picker object( Calendar popup).

•  Navigate to custom layout. In custom layout there will be 3 sections Header, Body and Footer.

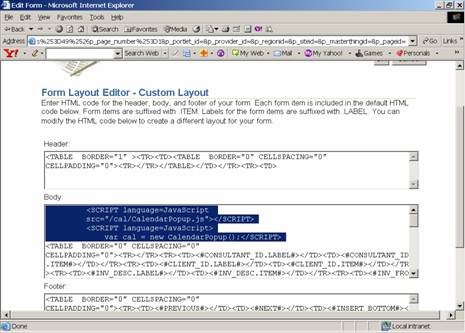

• Add the following code in header part(or top of the body as shown in the diagram).

           <SCRIPT language=JavaScript

           src="/cal/CalendarPopup.js"></SCRIPT>

           <SCRIPT language=JavaScript>

             var cal = new CalendarPopup();</SCRIPT>

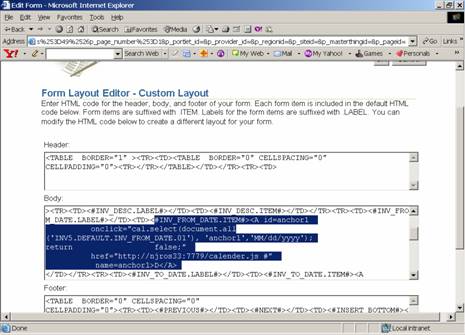

• Add the following code for the next to the date field (In this case the date field is

              <#INV_FROM_DATE.ITEM#>)

        <A id=anchor1

          onclick="cal.select(document.all('INV5.DEFAULT.INV_FROM_DATE.01'),

           'anchor1','MM/dd/yyyy'); return                  false;"

           href="http://bharat.gali.com:7779/calender.js #"

           name=anchor1>D</A>

•  In the above code even though item name is #INV_FROM_DATE.ITEM#  the

          original name of the field is INV5.DEFAULT.INV_FROM_DATE.01(this will be  find out by

          view source of the run time form).

    Since java script will have problems when the field names contain “.”. the reading of field

    should be like document.all('INV5.DEFAULT.INV_FROM_DATE.01') as show in the above

    code.

           ***** Note In the above code http://bharat.gali.com:7779/calender.js   means nothing you

           can use http://oracle.com . Actually if the implementation fails it goes to specified site.

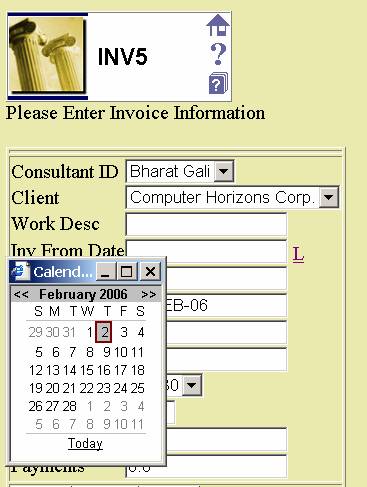

•  Final Out of Calender object for a date field.
